LOW-TEMP. ORBITAL SHAKER INCUBATOR
低溫迴轉式振盪培養箱 (直立式)

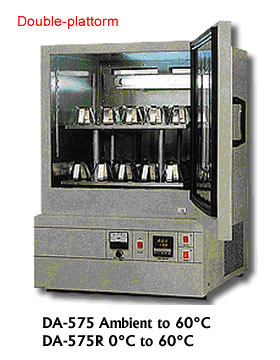

MODEL :DA-575(R)
TEMP. RANGE : Ambient to 60°C ( for LM-575 ) : 0°C to 60°C ( for LM-575R )
TEMP. ACCURACY : ± 0.1°C
TEMP. CONTROL : PID Controller
TEMP. DISPLAY : LED Digital Display
SHAKING SPEED : 10 to 250 r.p.m.
SHAKING STORKE : 38 mm.
COMPRESSOR : 1/4 hp ( for LM-575R)
POWER VOLTAGE :
110V / 60Hz or 220V / 50Hz
DIMENSION : ( W x D x H ) Platform : 480 x 380 x 300 mm
Chamber : 600 x 500 x 500 mm
Overall : 685 x 650 x 825 mm

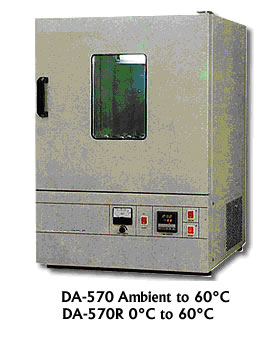

MODEL : DA-570(R)
TEMP. RANGE : Ambient to 60°C ( for LM-570 ) : 0°C to 60°C ( for LM-570R )
COMPRESSOR : 1/4 hp ( for LM-570R)
DIMENSION : ( W x D x H ) Platform : 480 x 380 mm
CLAMP SIZE :
50 ml
125 ml
250 ml
500 ml
1000 ml
2000 ml
3000 ml
5000 ml
DA-570(R)
48
35
20
12
6
2
1
DA-575(R)
96
70
40
24
-
MODEL : DA-590(R)
TEMP. RANGE : Ambient to 60°C ( for LM-590 ) : 0°C to 60°C ( for LM-590R )
SHAKING STORKE : 50 mm.
COMPRESSOR : 1/3 hp
DIMENSION : ( W x D x H ) Platform : 480 x740 mm
Chamber : 830 x 580 x 1000 mm
Overall : 910 x 785 x 1720 mm
MODEL :DA-600(R)
TEMP. RANGE : Ambient to 60°C ( for LM-600 ) : 0°C to 60°C ( for LM-600R )
COMPRESSOR : 1/3 hp ( for LM-600R)
DIMENSION : ( W x D x H ) Platform : 470 x940 mm
Chamber : 1080 x 690 x1100 mm
Overall : 1160 x 880 x1730 mm
DA-590(R)
104
50
15
8
4
DA-600(R)
119
78
32
18
10
3
